Autonomous sensing · Portable · Research prototype

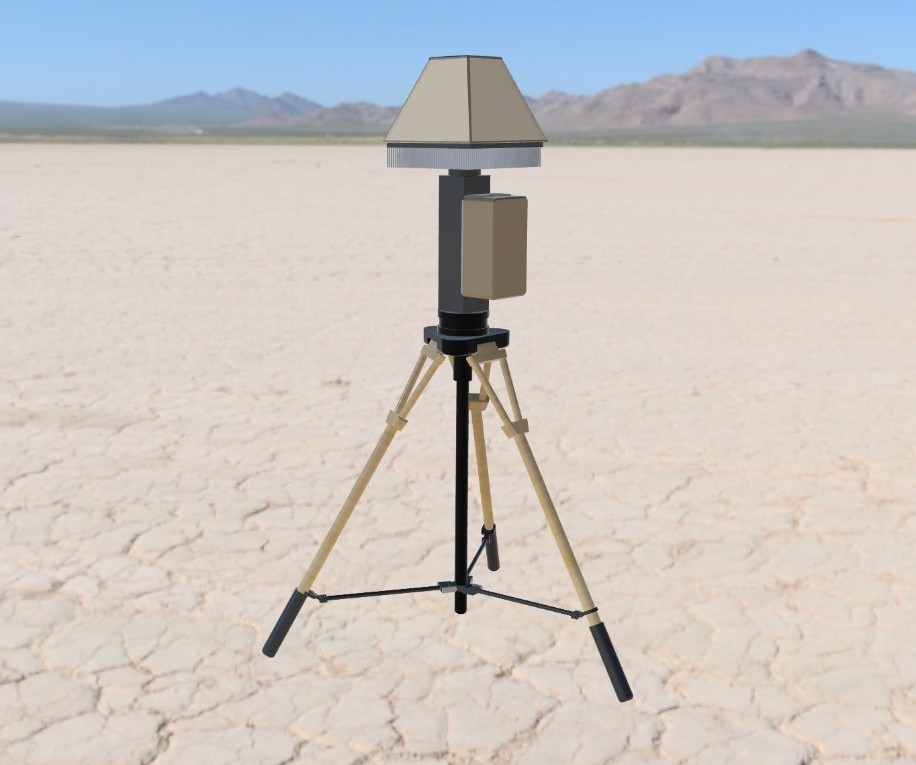

The Vandaris Surveillance Radar is a research concept for a self-contained ground-sensor node—an early-stage study in autonomous, all-weather situational awareness. It is explored through design and simulation as part of our counter-UAS autonomy research, not as a commercial product.
Design notes
Every subsystem in the concept is designed around one goal: dependable, autonomous sensing in a package a single researcher can carry and set up by hand. The notes below describe the mechanical design study.
01
A collapsible linkage system modeled for transport-to-study transitions in simulation. The kinematic tripod concept locks into a repeatable geometry in CAD—documented as a mechanical design study, not a fielded system.
02
Articulating leg concepts modeled for uneven surfaces while keeping the sensor mast plumb in simulation—a mechanical design parameter for scan-plane stability in research scenarios.
03
Continuous active scanning generates significant thermal load. A massive, exposed passive heatsink mounted directly beneath the sensor head pulls heat away from the RF core—sustaining full-power operation with no fans, no moving parts, and no acoustic or maintenance signature.
04
The trapezoidal-prism radome sheds rain, dust, and debris by design, while its flat interior faces provide precision mounting planes for planar antenna arrays. Environmental protection and RF performance, engineered into a single hardened shell.
05
A centrally mounted, weather-sealed module houses power, compute, and communications in one protected enclosure. Designed against harsh-environment targets, the concept aims to keep the unit autonomous and online across extremes of temperature, moisture, and shock.
Research prototype
One researcher. One kit. Persistent sensing concepts—under academic study.
Back to overviewConcept renders
Drop your final 3D concept renders into the placeholders below. Each frame is sized and styled—replace the block with an <img> pointing at your export.
Renders shown are engineering concepts · configurations subject to change
Design targets
Notional design targets for the Version 1 platform—stated for planning purposes, not as qualified field specifications.
<2min
Setup / breakdown
1operator
Man-portable setup
360°
Azimuth coverage
24/7
Continuous operation
Documentation
This case study documents an experimental sensing concept for academic exploration. It is not a commercial product and is not offered for sale.
